1M60 remembered

The Wellingborough Effect, 1M60 remembered

thanks to Dave Spencer

The traffic on the NE/SW and NW/SW routes generally was booked for type four traction of some form or other. Rather than improve matters, the layout at Gloucester where up trains that called had to reverse called for some run around and some changes of locomotive.

Where a change was called for, it was often for a locomotive off an inward passenger working and so compatibility between locomotive diagrams were needed concerning train braking and train heat.

This worked well generally the Peaks were dual braked and in 1977 to 1979/80 most trains were steam heat or dual stock, thus compatibility was not a problem. If a problem did arise on a train to Manchester or Liverpool: Gloucester could “throw out” a no heat locomotive with the knowledge that the train would have heat from Birmingham.

At times the depot at Horton Road resembled “Old Mother Hubbard’s cupboard”. Not handy if swapping a locomotive for a North East bound service. This was the reason why D1013 worked from Swansea to Leeds. This was a service where Cardiff, Gloucester and Birmingham all passed for providing replacement traction. A deal was done with the Gloucester driver to take 1E54 to Leeds and come back with 1V94 instead of 1V97 two hours later.

Most train watchers of a certain vintage will have heard of 1M60.

This was a train that ran seven days per week but boasted three different departure stations Sundays, it was a Swansea to Manchester service and quite good for a Peak. Summer Saturdays it ran as a Paignton to Manchester working, it missed Gloucester but ran via Worcester to put it back into the weekday times into Birmingham.

Weekdays and other Saturdays it ran as the 15:05, 15:07 or 15:15 Plymouth to Manchester. The stock was the back working off the 08:15 Birmingham to Plymouth 1V62. 1M60 posed a problem in operating terms Mondays to Fridays in that it didn’t have a passenger inbound working to provide a locomotive for it.

A solution was found by using a locomotive off a Bescot to Severn Tunnel freight, this 7V82 leaving Bescot at 13:08, this must change locomotives at Gloucester. There was also an 11:10 Bescot to Gloucester 7V61 freight.

Where does Wellingborough fit in you may ask?

The answer is that Wednesdays only there was a light locomotive departing there at 06:50 to Bescot specifically to work the 13:08 to Severn Tunnel Junction.

What about the rest of the weekdays?

I can’t find anything specific but have taken my information from the Mandatory Working Time table. There was a weekday early Tinsley-Bescot service but the locomotive could return on a Bescot to Toton freight. There may have been a WSX service in the conditional time-table. This would account for the odd “kick out” when the conditional service didn’t run.

With the locomotive being provided from Bescot,. I have every confidence that if they had a type four it would be used. However other calls on the locomotive could be made. If that was the case Bescot produced what they had, this would explain the class 25’s that worked.

Class 20’s could of course be provided by Wellingborough and off Tinsley/Toton to Bescot freights.  My table is not the sum total it reflects what I had for haulage. The train would usually be right time off Gloucester and Cheltenham. What then happened with the “novelty traction” would be time losing in various proportions.

Class 20’s with 75 mph maximum would lose ten minutes to Birmingham but would not need the Lickey bankers. The first few times 20’s worked they were banked on load ten, 350 tons tare. 25’s and 31’s were mandatory for the bankers I never had a single 37 to Birmingham on this service so can’t comment on a banking requirement.

1M60 was booked at Kings Norton at 1928 and due in Birmingham at 1940.

The “Wacky Racers” from Redditch and Longbridge had fortunately been reduced by that time in the Evening. Any more than ten late could see it follow the 1931 from Longbridge. Saltley panel would try to path an express in front where possible.

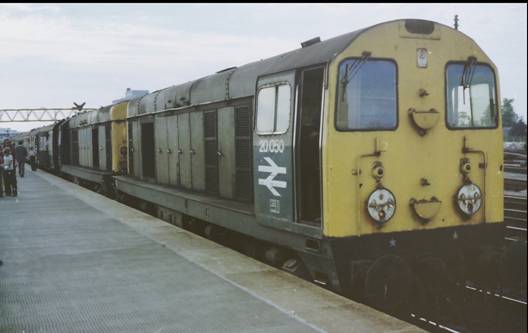

20050 (The original D8000) On 1M60 4th June 1980  Rear loco was 20048. (Both were not required for haulage) and I got the hell out of Gloucester on 1E73 see below,

45105 1E73 at Gloucester 4th June 1980 (Goodly Totter behind 1M60)

1E73 1745 Cardiff-Sheffield. This train suffered when novelty power was on 1M60 This was timed 19:35 at Kings Norton If passing the 19:31 ex Longbridge before Kings Norton it would usually get in on time and I’d make the 19:58 bus if not doing the “Tamworth move”.

If 1M60 was late and in front of the local 1E73 would usually be checked usually from about Selly Oak and the bus move was a bit “dubious”. Checking the 1981 working timetable 1E73 was shown as 19:55 departure for public 20:00 in the working.

Normal running times from Cheltenham to Kings Norton was 31 to 33 minutes,

0m 0chCheltenham0
 Alstone1m 25s
2m 35chSwindon Village3m 39s
 Cleeve4m 53s
7m 11chAshchurch7m 12s
 Bredon8m 40s
12m 07chEckington10m 32s
 Defford11m 15s
16m 07chPurton13m 14s
17m 78chAbbotswood14m 37s
20m 16chSpetchley16m 20s
23m 78chOddingley18m 46s
24m 35chDunhampstead19m 10s
29m 35chStoke Works22m 24s
31m 28chBromsgrove23m 58s
 Blackwell26m 20s
34m 71chBarnt Green28m 07s
 Longbridge30m 30s
 Northfield31m 17s
 Kings Norton32m 40s
  Checked
45m 44chBNS46m 09s
45075   350 tons  23rd July 1978

With load 10 the above run is very typical with a Sulzer type four, Good flying speeds 60 mph start to pass Cheltenham to Ashchurch though 12 seconds over par.  I used to reckon 7 minutes was par 1M74 with load 6 used to do 6m 45 with great regularity. Abbotswood Juncton to Stoke Works shows a flying average of 88mph

Both sets of junctions having to be passed at 80 mph. effectively speeds around 90 mph plus for many miles being attained.

The Lickey Incline (I referred this as the “Crompton Cakewalk”) was usually barnstormed with a 45 and load ten.  I treated the incline as 2 miles 7 chains Measured from the bridge at Bromsgrove to Blackwell being Milepost 53.25 This was a straight inclined plane at 1 in 37.

BARNSTORMING THE LICKEY
  TimeSpeed
55m 07chBROMSGROVE085
55m 00chPost 550m 10s80
54m 60chPost 54.750m 25s60
54m 40chPost 54.50m 40s60
54m 20chPost 54.250m 58s50
54m 00chPost 541m 16s50
53m 60chPost 53.751m 39s39
53m 40chPost 53.502m 05s37
53m 20chBLACKWELL2m 33s32
53m 00chPost 532m 55s40

45049 1M60  10 for 350 ton



Even after arriving at Birmingham 1M60 still had the capacity for delay. Whilst the electric locomotive was attaching at the “B” end, another shunter was uncoupling the front BSK and RMB (Brake second compartment and Buffet car) the diesels taking the two coaches to Oxley via the Grand Junction route. They then coupled to another eight coaches to form next day’s 08:15 Birmingham to Plymouth.  In summer it was possible to photograph the empty stock at Wolverhampton after coming up on 1M60. The ECS was off Birmingham at 19:47.

After depositing the stock at Oxley it was a case of Light engine to Saltley,

DAS Runs with 1M60 (Includes off line runs)

06-May-7846020GloucesterBNS
30-May-7845063GloucesterCheltenham
31-May-7847320GloucesterCheltenham
08-Jun-7845077GloucesterCheltenham
12-Jun-7845046CheltenhamBNS
04-Jul-7845072GloucesterBNS
18-Jul-7845005GloucesterBNS
26-Jul-7845037GloucesterBNS
01-Aug-7845068GloucesterBNS
03-Aug-7845056GloucesterBNS
06-Aug-7845032GloucesterBNS
08-Aug-7845052GloucesterCheltenham
06-Sep-7846015CheltenhamBNS
09-Dec-7850047Exeter CentralBristol TM
09-Dec-7850035Bristol TMGloucester
09-Dec-7846006GloucesterBNS
30-Jan-7931418GloucesterBNS
30-Jan-7937076BromsgroveBlackwellBanking the Ped
30-Jan-7937188BromsgroveBlackwellBanking the Ped
29-Mar-7925177CheltenhamBNS
29-Mar-7937286BromsgroveBlackwellBanking the 25
29-Mar-7937293BromsgroveBlackwellBanking the 25
21-Apr-7945032GloucesterBNS
30-Apr-7945072GloucesterBNS
01-May-7946042GloucesterCheltenham
02-May-7945007GloucesterBNS
08-May-7945049GloucesterBNS
17-May-7925294GloucesterCheltenham
18-May-7945003GloucesterBNS
05-Jun-7945027CheltenhamBNS
07-Jun-7945005GloucesterBNS
11-Jun-7945016GloucesterBNS
12-Jun-7931301CheltenhamBNS
12-Jun-7937214BromsgroveBlackwellBanking the Ped
12-Jun-7937240BromsgroveBlackwellBanking the Ped
20-Jun-7946052GloucesterCheltenham
26-Jun-7920141GloucesterBNS
26-Jun-7920173GloucesterBNS
27-Jun-7946043GloucesterCheltenham
30-Jun-7945047CheltenhamBNS
02-Jul-7945050GloucesterBNS
02-Jul-7937292BromsgroveBlackwellBanking the 45
02-Jul-7937290BromsgroveBlackwellBanking the 45
03-Jul-7920197GloucesterMP85.75Choppers failed
03-Jul-7920044GloucesterMP85.75Choppers failed
03-Jul-7945070MP85.75BNS
04-Jul-7947315GloucesterCheltenham
05-Jul-7945070GloucesterBNS
06-Jul-7920112GloucesterCheltenham
06-Jul-7920046GloucesterCheltenham
09-Jul-7945072GloucesterBNS
11-Jul-7945050CheltenhamBNS
17-Jul-7920095GloucesterCheltenham
17-Jul-7920031GloucesterCheltenham
18-Jul-7937271GloucesterCheltenham
19-Jul-7945074GloucesterBNS
21-Jul-7945026CheltenhamBNS
23-Jul-7945075GloucesterBNS
31-Jul-7945049GloucesterBNS
03-Aug-7931278GloucesterCheltenham
10-Aug-7946013GloucesterBNS
17-Aug-7945020GloucesterBNS
21-Sep-7945074GloucesterBNS
29-Sep-7945003CheltenhamBNS
09-Oct-7945044GloucesterBNS
12-Oct-7945074GloucesterBNS
19-Oct-7925100GloucesterCheltenham
12-Nov-7946034GloucesterCheltenham
03-Jan-8046045GloucesterBNS
07-Jan-8046015GloucesterBNS
14-Feb-8020040GloucesterCheltenham
14-Feb-8020041GloucesterCheltenham
15-Feb-8045066GloucesterCheltenham
27-Feb-8045001GloucesterBNS
11-Mar-8045029GloucesterBNS
22-Mar-8045034Bristol TMBNS
05-May-8046013GloucesterCheltenham
13-May-8045029GloucesterBNS
19-May-8045051GloucesterBNS
20-May-8045020GloucesterBNS
23-May-8046008GloucesterCheltenham
10-Jun-8045073GloucesterBNS
19-Jun-8045049GloucesterBNS
20-Jun-8047324GloucesterCheltenham
01-Jul-8046048GloucesterBNS
02-Jul-8045040GloucesterCheltenham
08-Jul-8045075GloucesterBNS
17-Jul-8047104GloucesterCheltenham
21-Jul-8046048GloucesterCheltenham
24-Jul-8046027GloucesterCheltenham
28-Jul-8045060GloucesterCheltenham
07-Aug-8045037GloucesterBNS
13-Aug-8045024GloucesterBNS
18-Aug-8047242GloucesterCheltenham
20-Aug-8045060GloucesterBNS
30-Aug-8045007CheltenhamBNS
04-Sep-8045009GloucesterBNS
16-Sep-8045072GloucesterBNS
22-Sep-8045068GloucesterBNS
30-Sep-8045016GloucesterBNS
02-Oct-8046029GloucesterBNS
24-Nov-8045011GloucesterBNS
08-May-8147466GloucesterCheltenham
15-May-8145052GloucesterBNS
24-Jul-8145033CheltenhamBNS
27-Jul-8145043CheltenhamBNS
01-Aug-8145055CheltenhamBNS
10-Aug-8145074GloucesterCheltenham
15-Aug-8145101CheltenhamBNS
20-Aug-8145012GloucesterBNS
15-Sep-8145065CheltenhamBNS
28-Sep-8145060CheltenhamBNS
03-Oct-8145114CheltenhamBNS

A couple of points need to be made.  45050 did the freight but Bescot sent it out with two traction motors isolated. It was a bit of a stagger from Cheltenham and no surprise that banking assistance was requested. I thought that the Crompton would be out for a few days.

Less than 24 hours later it was back out storming on 1V92. Saltley had wielded the battering hammer. The failure of the 20’s was down to a traction motor problem just after leaving Cheltenham and there was quite a lot of smoke and 45070 was whistled up as replacement.

Valentines Day 1980 saw a chilly run with two ex Bescot locomotives (1960’s era)

I often asked why no common sense prevailed and when small low power locomotives were diagrammed for 1M60, could they not have been swapped for 1M74?

That was load six. The booked loco for 1M74 arrived in Gloucester on 1V94 twenty five minutes before 1M60 arrived.  It made sense to me but not the operating department. I believe both locomotives ended up at Saltley. If working 1M60, 1M74’s loco still had time to get back.

Also if Saltley didn’t want the novelty traction Bescot could send a type four to Duddeston and then work them back.

thanks again to Dave Spencer for the memories and phots….
